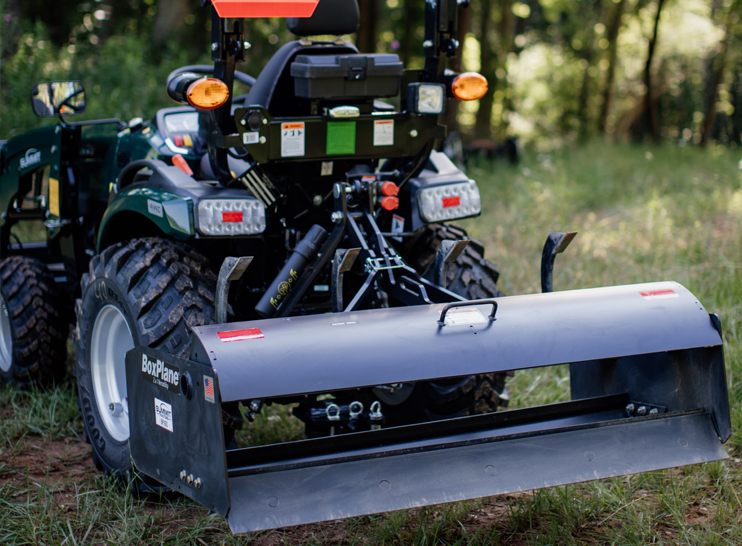

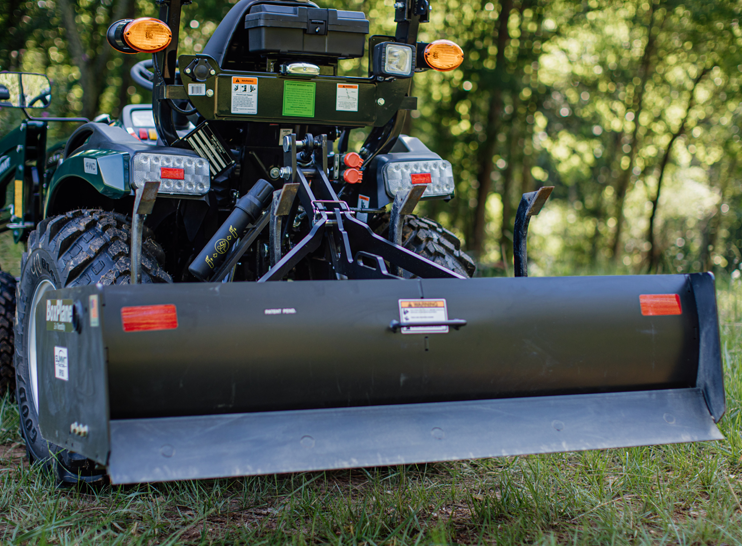

Summit BPX Series BoxPlane

The Summit BPX Series BoxPlanes are a patent pending U.S. made Summit Tractors exclusive manufactured in Wisconsin. A true “2 for 1” implement, the BoxPlane does the work of both a box scraper and a land plane without requiring the purchase of two attachments and having to switch between the two to produce the very best results to meet your grading needs.

60" BOXPLANE
Working Width: 58.5”
Overall Width: 59.25”
Number of Scarifier Shanks: 4
Tractor HP Requirement: 20-40 Gross Engine HP
Weight With Shanks: 500 lbs.
Overall Length: 35.8”
Overall Height: 32.25”
Side Panel Height: 14.5”
Side Panel Length: 34”
Cutting Edges: ½” x 6”
Shank Adjustments: 3
Lower Draft Link Attachment: Forged Draw Pins
Hitch Type: Cat. I Compatible w/Quick Hitch Adapter
Angled Front Blade: Removeable

------------------------------------------------

Convertible Rear Gate
Four Scarifiers With Three Height Adjustments
Removeable Forward Cutting Edge
Category I 3-pt Hitch Compatible
Converts From Box Blade to Land Plane Mode
Heavy Duty – Weight 500 lbs.
Made in USA

Summit Tractors warrants to the original purchaser that the BPX Series BoxPlanes be free of defects in material and workmanship for a period of twenty-four (24) months from purchase date.
