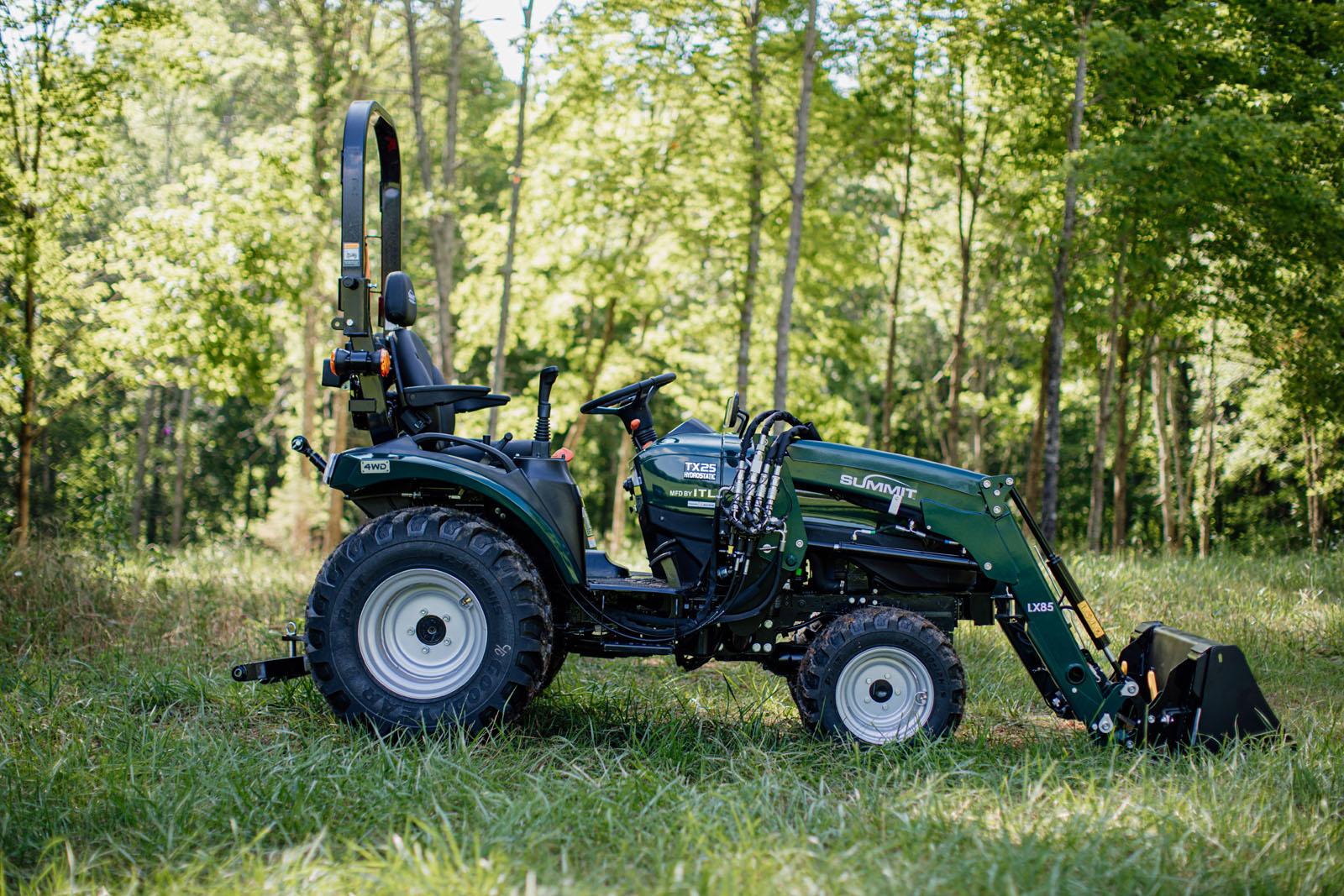

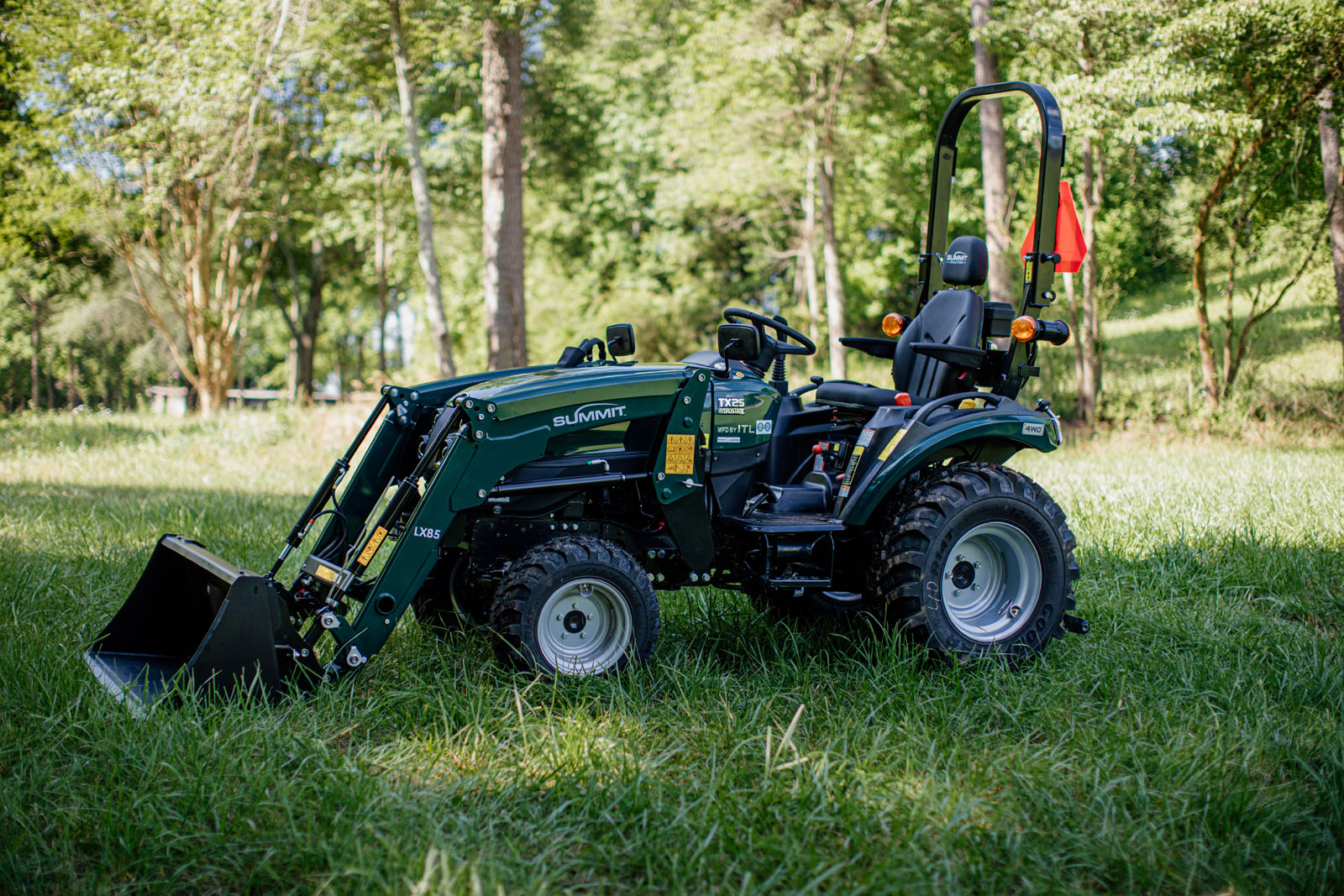

The Summit TX25H compact tractor is a versatile year-round workhorse designed to handle a wide range of tasks with ease. With the right attachments it can mow, grade, haul, dig, till, clear snow and much more, delivering the power of a larger tractor in a smaller more maneuverable package. This adaptability makes the TX25H a smart investment for property owners who want one machine that can do it all.
| Engine Manufacturer | Mitsubishi |
|---|---|
| Engine Type | Natural Aspiration |
| Engine HP — Gross (kW) | 24.7 (18.4) |
| PTO HP (kW) | 18 (13.4) |
| Rated Engine Speed (rpm) | 2500 |
| Cylinders | 3 |
| Displacement — cu in (cc) | 80.42 (1318) |

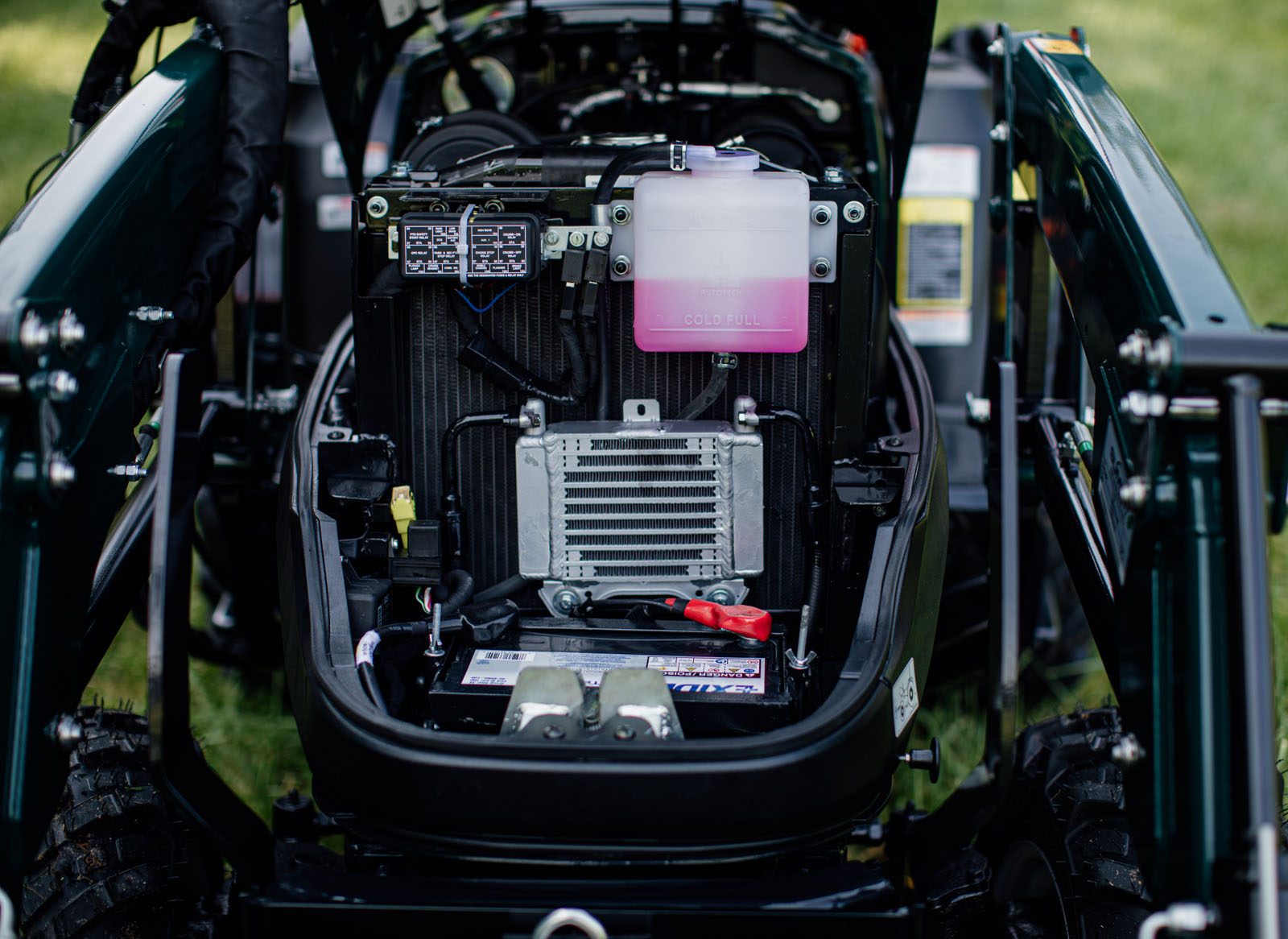

| Cooling System & Air Cleaner | Liquid, Dual Element |
| Alternator | 12V 42A |
| Starting Aid | Glow Plug |
| Fuel System | Indirect Fuel Injection |
| Fuel Tank — U.S. gal (L) | 6.9 (26) |
| Transmission | 2-Range Hydrostatic |
|---|---|
| Foot Control | Side-by-Side Pedals |
| Cruise Control | Standard Electronic |
| Max Traveling Speed — mph (km/h) | 11.32 (18.22) |
| Brakes | Wet Disc |
| Steering | Hydraulic |
| Pump Type | Open Center |
|---|---|
| Max Total Flow — gpm (L/min) | 6.6 (24.9) |
| 3-Point Hitch Category | Category 1 Standard |
| 3-Point Hitch Lift Capacity — lb (kg) | 1322 (600) |
| At 24" Behind Link Ends — lb (kg) | 1168 (530) |
| Lift Control | Position Control |

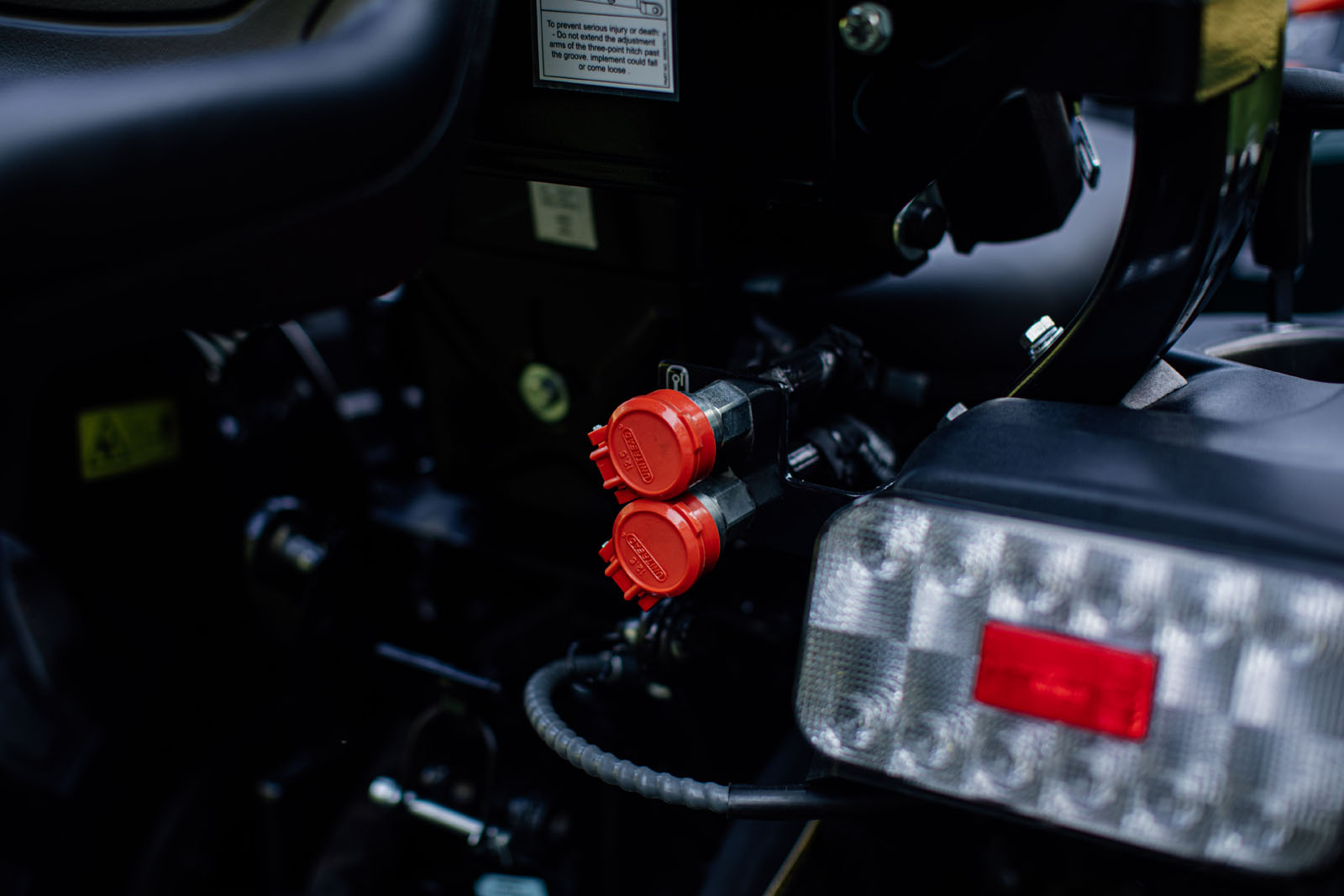

| Rear Remote Valves | Standard |
| 3rd Function Diverter Valve (Grapple Ready) | Standard |
| PTO Type | Independent |
|---|---|
| PTO Control | Electric/Hydro |
| Rear PTO (rpm) | 540 |
| Mid PTO (rpm) | Standard — 2100 |
| PTO Shaft Diameter — in (mm) | 1-3/8 (35) |
| Overall Length — in (mm) | 154 (3911) — Front to end of 3-pt |
|---|---|
| Overall Width — in (mm) | 54 (1371) |
| Wheelbase — in (mm) | 61.8 (1569.72) |
| Height to Top of ROPS — in (mm) | 92.12 (2339.84) |
| Min. Ground Clearance — in (mm) | 9.6 (245) — Front Axle |
| Total Weight — lb (kg) w/o Loader & Tire Ballast | 2513 (1139.8) |
| Total Weight — lb (kg) w/ Loader & Tire Ballast | 3600 (1632.9) |
| Front (USA Goodyear R14T) | 23×8.50-12 |
|---|---|
| Rear (USA Goodyear R14T) | 12-16.5 |
| ROPS | Folding |
|---|---|

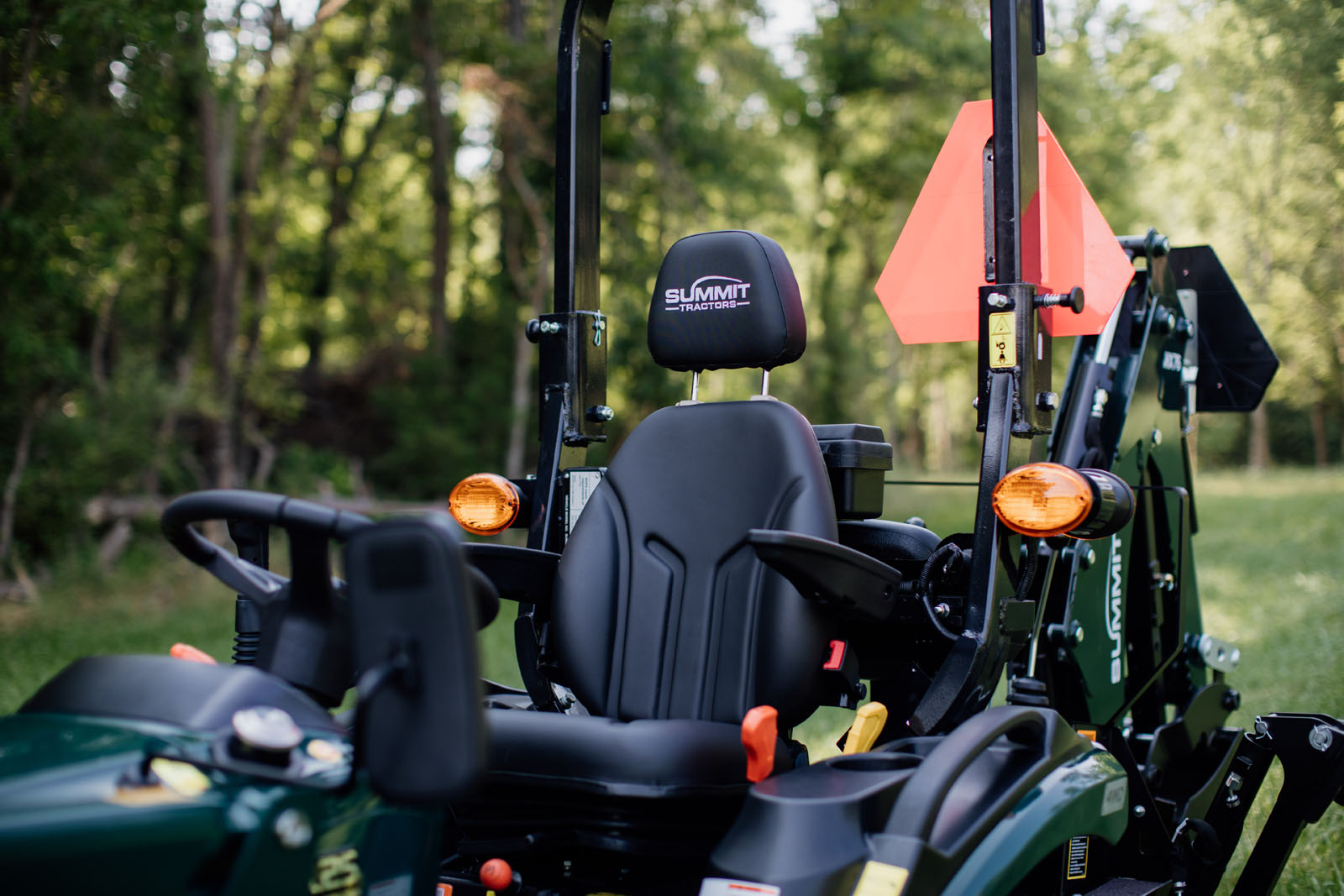

| High-Back Seat w/ Backrest Extension | Standard |
| Armrests | Folding & Angle-Adjustable (Standard) |
| Seat Belt | Retractable (Standard) |
| Seat Cover | Weatherproof Coated PVC |
| Side-View Mirrors | Standard, Hand-Adjustable, Removable |
| Seat Suspension | Dial by Operator Weight (Standard) |
| Floor Mat | Heavy-Duty Rubber (Standard) |
| Entry Assist Steps & Grab Rails | Both Sides (Standard) |
| 12V Power Outlet & Cup Holder | Standard |
| Drawbars | Two — Cross-Type and Swinging (Standard) |
|---|---|

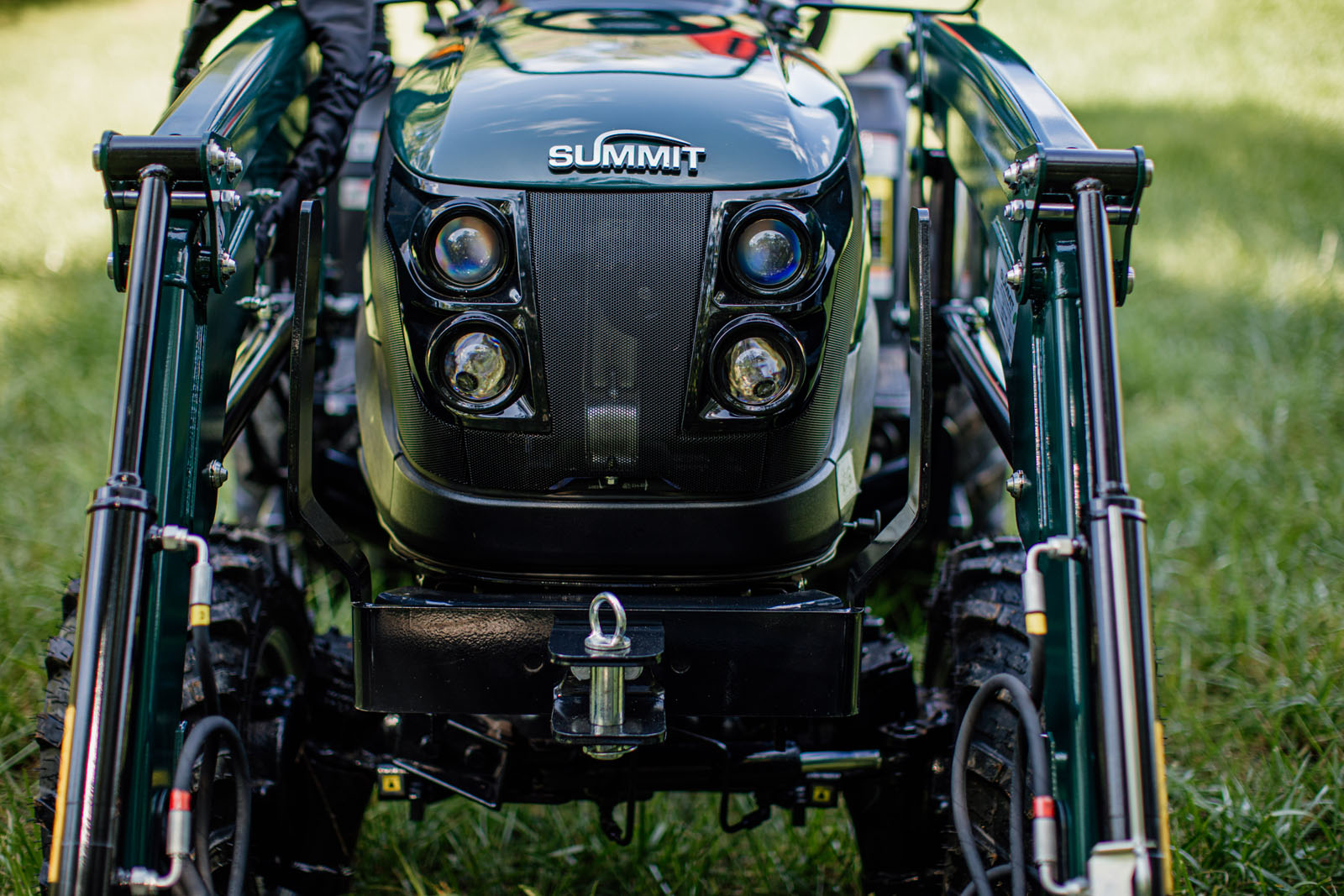

| Front Tow Hook | Standard |
| Hood Material | Metal |

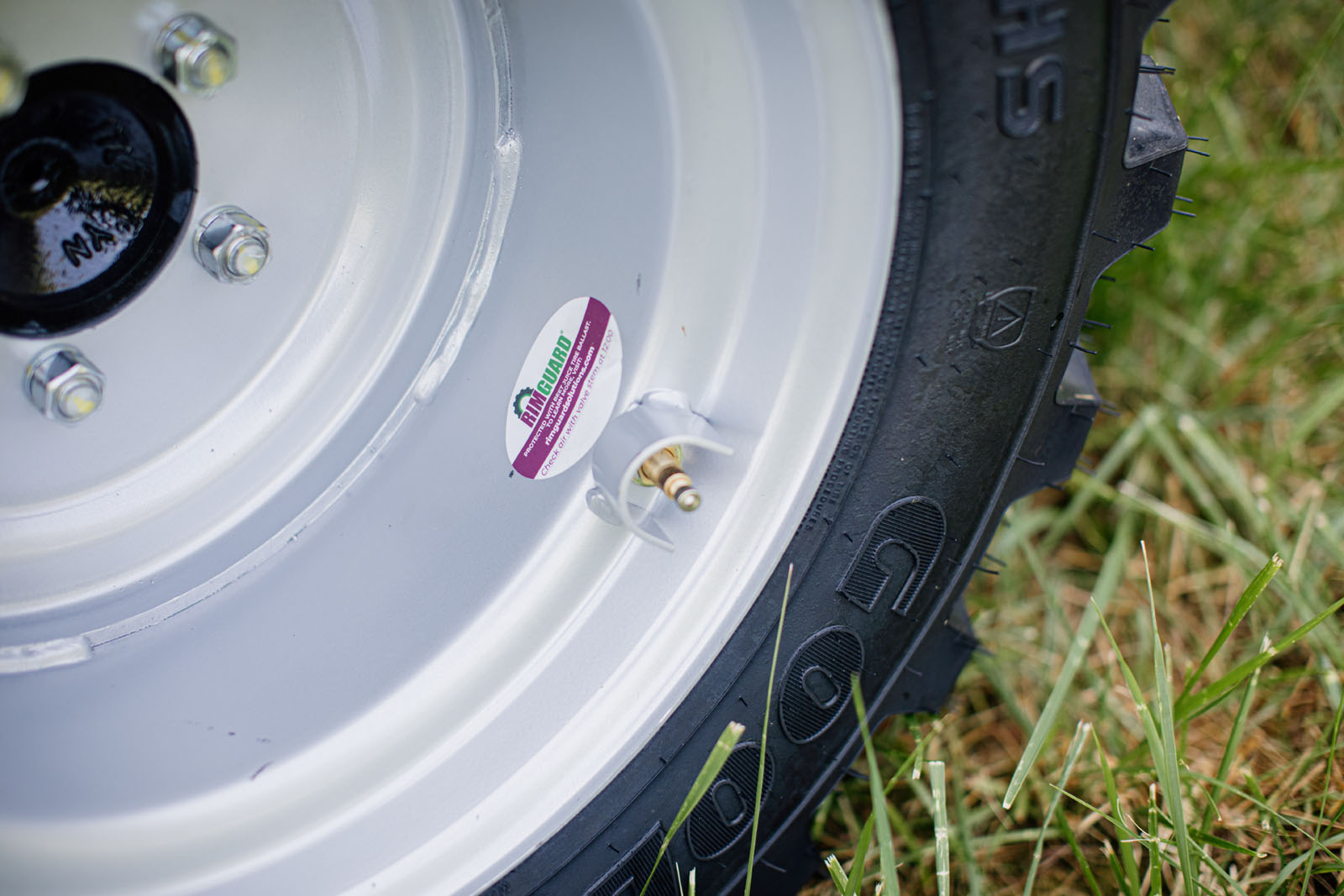

| RimGuard Liquid Tire Ballast (Rears) | Standard |

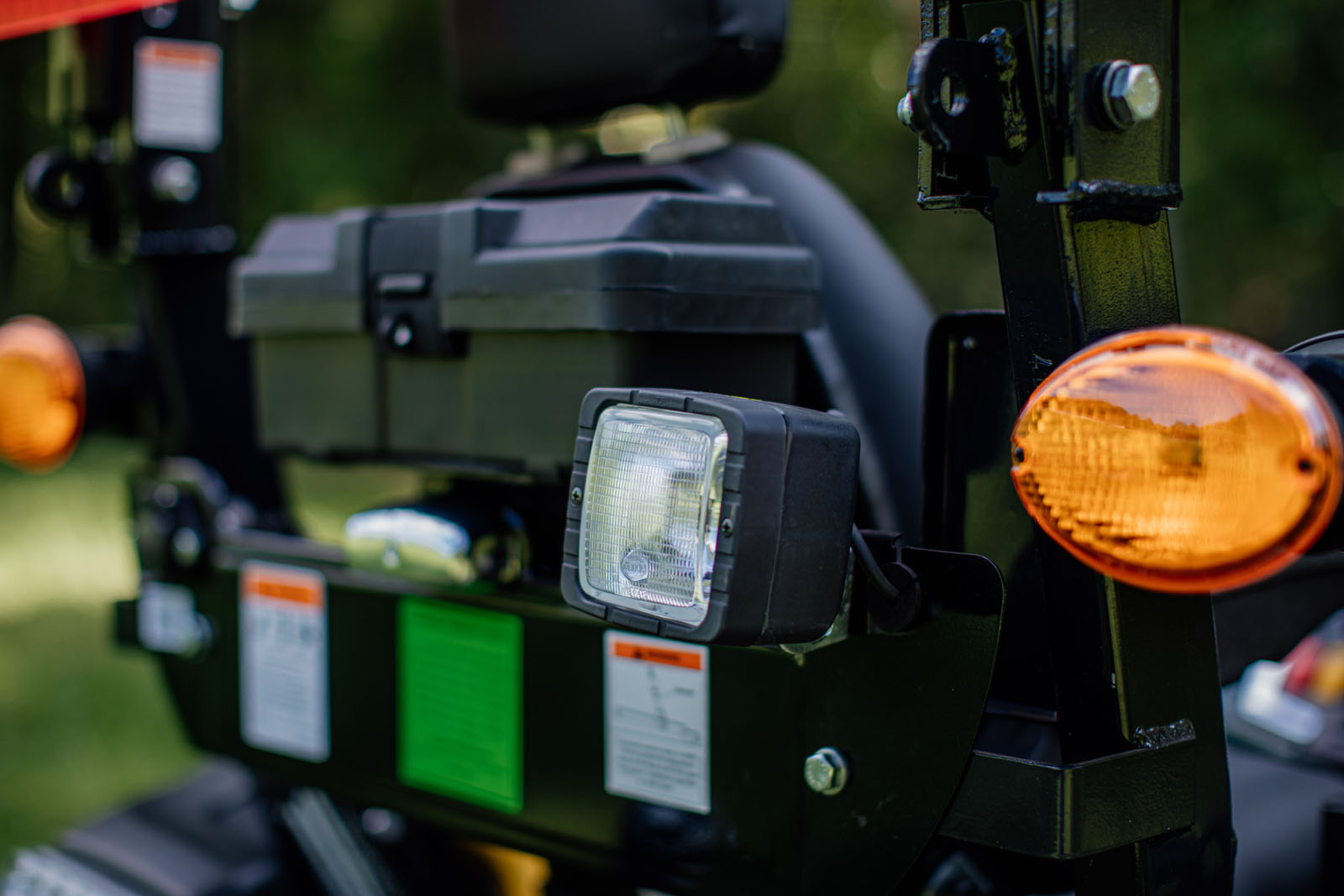

| Projector Headlights & Rear Work Light | Standard |

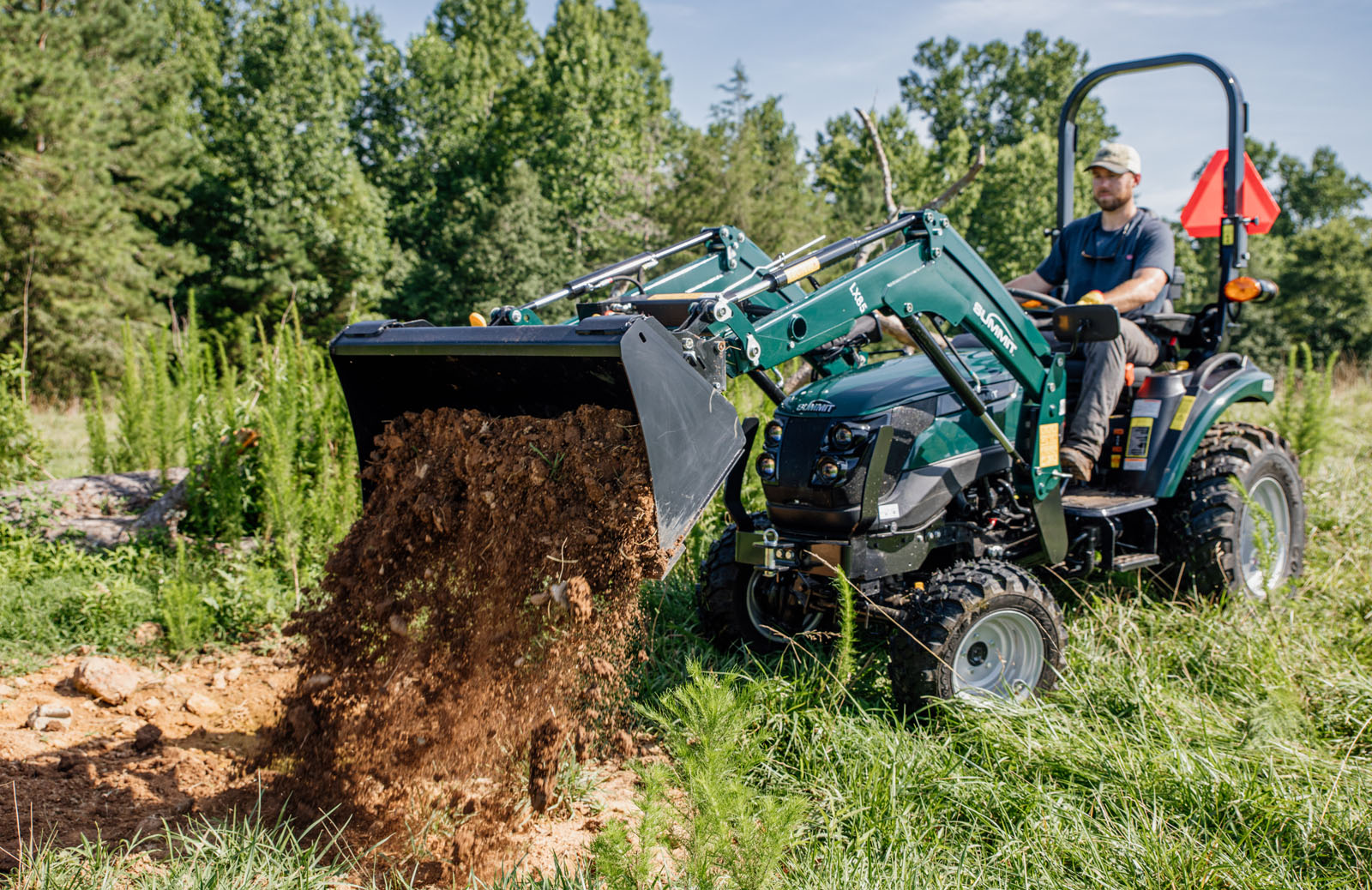

| Model | LX85 |
|---|---|
| Mechanical Self-Leveling | Standard |
| Breakout Force at Pivot Pin — lb (kg) | 1477 (670) |
| Max Lift Height to Bucket Pivot Pin — in (mm) | 83 (2108) |
| Lift Capacity to Max Height at Pivot Pin — lb (kg) | 1234 (559) |
| Dumping Clearance — in (mm) | 61 (1540) |
| Bucket Width — in (mm) | 50 (1270) |
| Total Weight (Loader w/ Bucket) — lb (kg) | 573 (260) |
| Bucket Weight — lb (kg) | 176 (80) |
| Bucket Connection | Skid-Steer Quick Attach (SSQA) |
| Bucket Level Indicator (BLI) | Standard |
