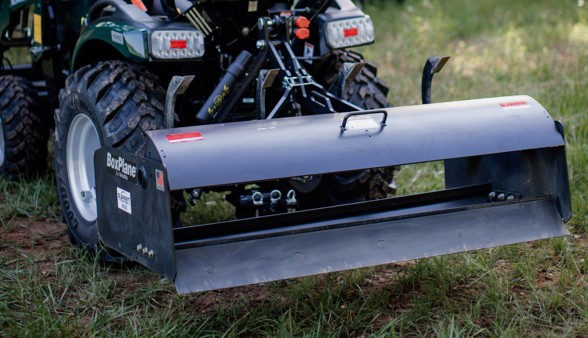

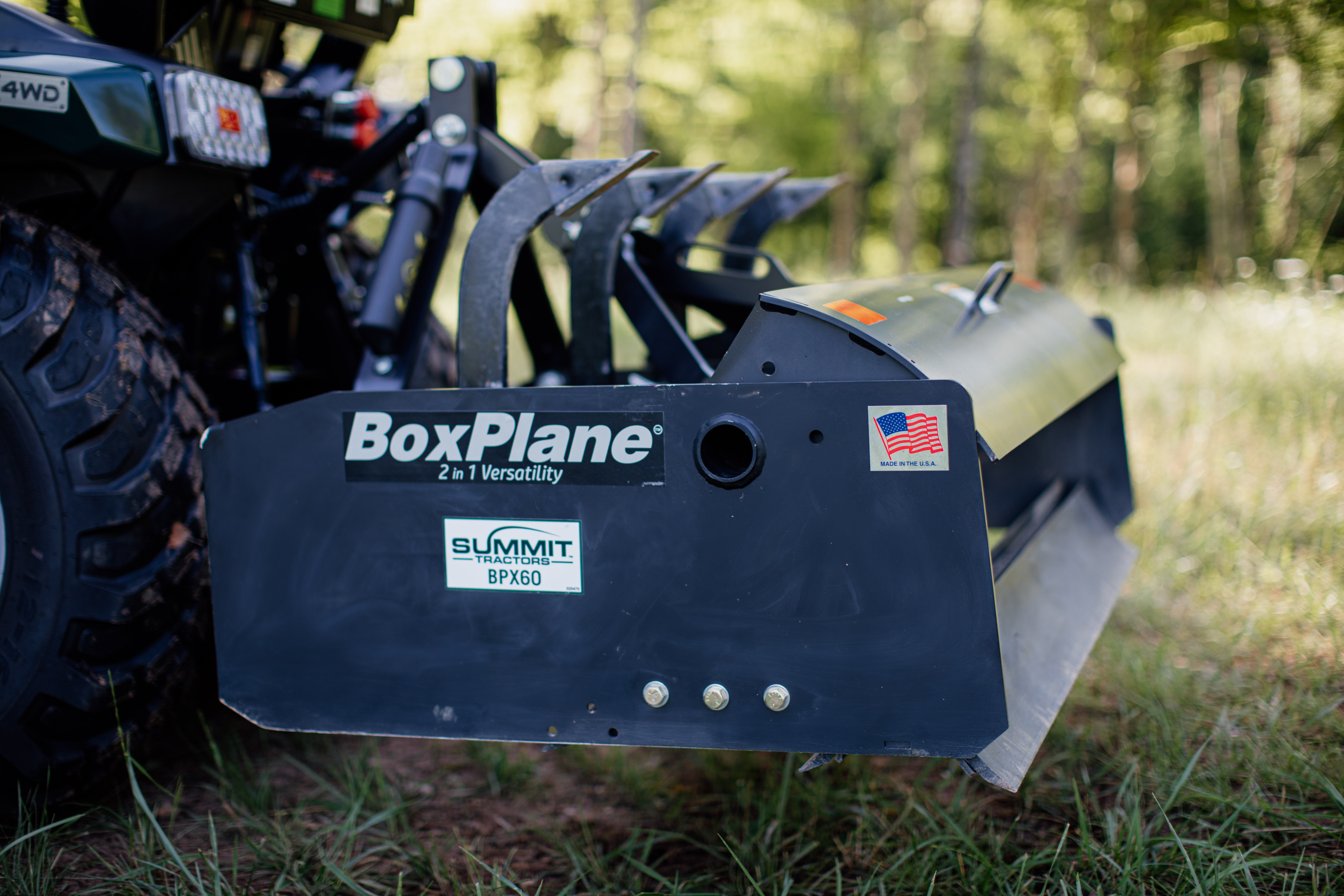

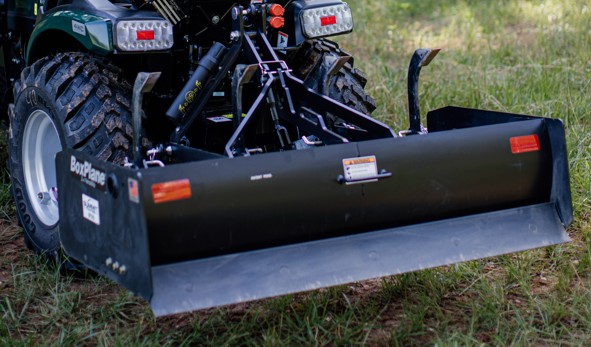

The Summit BPX60 BoxPlane combines the cutting, carrying and backdragging action of a box blade with the smoothing and leveling performance of a land plane without swapping implements. Built in Wisconsin and designed for Category 1 tractors, the BPX60 features a convertible rear gate, removable forward cutting edge, and four height adjustable scarifier shanks to break up hardpack before leveling. Heavy duty construction (500 lb)
Key Features
2-in-1 design: box blade + land plane
Made in USA
Category 1 quick-hitch compatible
Convertible rear gate for backdrag/finish work
Four scarifier shanks with three height adjustments
Removable forward cutting edge
Forged drawpin lower links
Heavy duty build-500 lb
Specifications
Model: BPX60
Working width: 58.5"
Overall width: 59.25"
Overall length: 35.8"
Overall height: 32.25"
Side panel height: 14.5"
Side panel length: 34"
Weight with shanks: 500 lb
Scarifier shanks: 4 (three height positions)
Cutting edges: 1/2" x 6"
Tractor HP: 20-40 gross engine HP
Lower draft link: forged draw pins
Hitch: Cat. I compatible
Angled front blade: removable
Seasonal Uses
Spring
Repairing and re-crowning gravel driveways after winter
Spreading and leveling fresh gravel or soil
Smoothing ruts in barn lots and lanes
Establishing gentle grades for drainage around buildings
Summer
Maintaining driveways and parking areas
Leveling pads for sheds or patios or play areas
Backfilling and smoothing around landscape projects
Maintaining trails with periodic cuts and fills
Fall
Final driveway maintenance before freeze-up
Filling low spots and washboards after rains
Pulling material from high spots to low for winter drainage
Winter
Light snow removal and back-dragging on gravel (with shoes set high)
